Descriptions

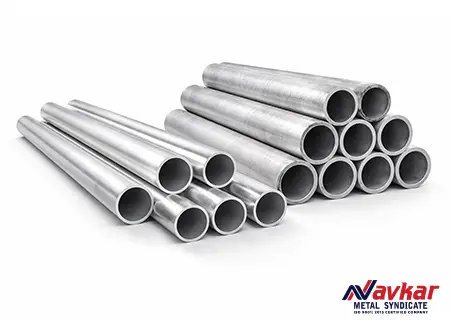

Navkar Metal Syndicate supplies precision aluminium pipes and tubes for structural, fluid, and heat-transfer applications. We stock and manufacture seamless and welded (ERW/HF) tubes in popular alloys and tempers—delivering high strength-to-weight, excellent corrosion resistance, and premium surface finish with strict dimensional control.
Why Aluminium from Navkar
- High strength–to–weight with good toughness and fatigue resistance.
- Natural corrosion resistance with optional anodizing/powder-coat for marine or architectural use.
- Excellent thermal/electrical conductivity for HVACR, condensers, bus-ducts, and EV systems.
- Superior workability—easy to cut, form, bend, weld, and machine.
- Reliable QA—Mill Test Certificates (EN 10204 3.1), heat/lot traceability, and export-grade packing.
Product Range
- Manufacturing: Seamless (extruded & drawn), Welded (ERW/HF TIG/MIG), Drawn Over Mandrel (DOM), Fin/serrated & micro-channel (on request)
- Shapes: Round, Square, Rectangular, Elliptical, Custom Profiles
- Tempers: O, H112, T4, T5, T6, T651, T66 (alloy dependent)
- Finishes: Mill, Brushed, Anodized (clear/colours), Powder-coated, Polished
Common Alloys & Use-Cases
| Alloy | Series | Typical Tempers | Key Properties | Typical Applications |
|---|---|---|---|---|
| 6061 | Al-Mg-Si | T4 / T6 / T651 | Balanced strength, weldable, machinable | Frames, jigs, transport structures, marine fittings |
| 6063 | Al-Mg-Si | T5 / T6 | Excellent extrudability & anodizing finish | Architectural tubes, handrails, façades |
| 6082 | Al-Mg-Si (high Mg) | T6 / T651 | Higher strength than 6061, good fatigue | Heavy structures, cranes, offshore fabrications |
| 5083 | Al-Mg (5xxx) | O / H111 / H112 | Very high corrosion resistance, marine grade | Shipbuilding, cryogenic pipes, pressure service (non-heat-treatable) |
| 1100 / 1050 | Commercially Pure | O / H14 / H18 | Highest thermal/electrical conductivity, formable | HVACR heat transfer, bus tubes, decorative |
Other alloys on request: 3003, 3103, 5086, 5454, 5754, 6101 (electrical), 7005/7020 (structural), etc.
Size Range (Typical)
Round Tubes
- OD: 6 mm – 300 mm (¼″ – 12″)
- Wall: 0.5 mm – 25 mm (Sch-thin to heavy)
- Length: 3 m, 6 m, or cut-to-length
Square / Rectangular
- Square: 10×10 – 200×200 mm
- Rectangular: 20×10 – 250×150 mm
- Wall: 1.0 – 12.5 mm (alloy/temper dependent)
Custom OD/ID, tight tolerances, and near-net extruded profiles are available for volume programs.
Standards & Specifications
- ASTM/ASME: B221 (extruded), B241/B345 (seamless), B210 (drawn), B483 (welded), SB-* equivalents
- EN: EN 573 (chemistry), EN 755 (extruded), EN 754 (drawn), EN 485 (flat), EN 10204 3.1 MTC
- JIS: H 4040 (extruded), H 4045 (drawn)
- ISO: ISO 6361/209-series (as applicable)
Dimensional Tolerances (Typical)
- OD: ±0.10–±0.50 mm depending on size/process
- Wall: ±8–10% (drawn/seamless tighter on request)
- Straightness: ≤1 mm/m (standard); tighter for heat-exchanger tubes
- Surface: Ra as extruded/drawn; anodizing-grade finish available
Applications
- HVACR coils & conduits
- Heat-exchanger & condenser tubes
- Automotive & EV bus-bars (6101), roll-cages
- Architectural handrails & façades (6063)
- Marine & offshore structures (5083/6082)
- Compressed air & utility piping
- Furniture & fixtures
- General engineering & fabrication
- Food, pharma & clean-room utilities
Quality Assurance
- EN 10204 3.1 Mill Test Certificates with chemistry, mechanicals, and dimensional reports
- Tests: Tensile, Yield, Elongation, Hardness; Eddy-current / Hydro (on request); Anodizing adhesion (where applicable)
- Weld integrity (for welded tubes): Radiography/DP as agreed
- Compliance: RoHS/REACH where required
Value-Added Services
- Cut-to-length, deburring, chamfering
- Bending, swaging, beading, slotting, perforation
- Fabrication & sub-assemblies (fixtures, frames)
- Surface: Anodizing (clear/bronze/black/colours), powder-coating, brushing, polishing
- CNC machining for end-fittings, manifolds, and headers
Packing & Logistics
- Seaworthy export packing: end-caps, VCI/oil where applicable, strapped bundles, fumigated pallets
- Barcoding with heat/lot numbers and size/grade/temper
- Global delivery with documentation for customs & third-party inspection
Request a Quote
Share alloy, temper, OD/ID or size (square/rect.), wall thickness, length, finish, and applicable standard. Our team will revert with the best lead times and pricing.
Chemical Composition
The following table lists the typical chemical composition (in % by weight) of common aluminium alloys used for pipes and tubes supplied by Navkar Metal Syndicate.
| Alloy / Grade | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others (Each) | Others (Total) | Al (Balance) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | 0.25 max | 0.40 max | 0.05 max | 0.05 max | 0.05 max | — | 0.07 max | 0.05 max | 0.03 | 0.10 | 99.5 min |
| 1100 | 0.95 max | — | 0.05–0.20 | 0.05 max | 0.05 max | — | 0.10 max | 0.05 max | 0.03 | 0.15 | 99.0 min |
| 3003 | 0.60 max | 0.70 max | 0.05–0.20 | 1.0–1.5 | 0.05 max | — | 0.10 max | 0.05 max | 0.05 | 0.15 | Remainder |
| 5052 | 0.25 max | 0.40 max | 0.10 max | 0.10 max | 2.2–2.8 | 0.15–0.35 | 0.10 max | 0.03 max | 0.03 | 0.10 | Remainder |
| 5083 | 0.40 max | 0.40 max | 0.10 max | 0.40–1.0 | 4.0–4.9 | 0.05–0.25 | 0.25 max | 0.15 max | 0.05 | 0.15 | Remainder |
| 6061 | 0.40–0.80 | 0.70 max | 0.15–0.40 | 0.15 max | 0.80–1.20 | 0.04–0.35 | 0.25 max | 0.15 max | 0.05 | 0.15 | Remainder |
| 6063 | 0.20–0.60 | 0.35 max | 0.10 max | 0.10 max | 0.45–0.90 | 0.10 max | 0.10 max | 0.10 max | 0.05 | 0.15 | Remainder |
| 6082 | 0.70–1.30 | 0.50 max | 0.10 max | 0.40–1.0 | 0.60–1.20 | 0.25 max | 0.20 max | 0.10 max | 0.05 | 0.15 | Remainder |
| 6101 | 0.30–0.70 | 0.50 max | 0.10 max | 0.03 max | 0.35–0.80 | 0.03 max | 0.10 max | 0.03 max | 0.03 | 0.10 | Remainder |
| 7075 | 0.40 max | 0.50 max | 1.2–2.0 | 0.30 max | 2.1–2.9 | 0.18–0.28 | 5.1–6.1 | 0.20 max | 0.05 | 0.15 | Remainder |
Note: Values are nominal ranges per ASTM B221, B241, EN 573, and JIS H4000. Exact composition may vary by supplier and process.
Mechanical, Physical & Fabrication Properties
Typical values for common aluminium alloys used in pipes & tubes supplied by Navkar Metal Syndicate. Values are indicative (room temperature) and vary with temper, product form, and specification.
Mechanical & Physical Properties (Typical)
| Alloy | Common Tempers | Tensile Strength UTS (MPa) | Yield Strength 0.2% (MPa) | Elongation (%) | Hardness (HB) | Density (g/cm³) | Electrical Conductivity (%IACS) | Thermal Conductivity (W/m·K) | Elastic Modulus (GPa) | Melting Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | O, H14, H24 | 60–100 | 20–30 | 25–40 | 20–30 | 2.71 | 60–62 | 220–235 | 69 | 646–657 |
| 1100 | O, H12, H14, H18 | 110–145 | 45–95 | 10–35 | 28–35 | 2.71 | 55–60 | 220–230 | 69 | 643–657 |
| 3003 | O, H14, H24, H32 | 145–200 | 65–130 | 8–30 | 28–40 | 2.73 | 40–45 | 170–190 | 69 | 643–654 |
| 5052 | O, H32, H34 | 220–260 | 130–200 | 7–18 | 60–75 | 2.68 | 30–35 | 130–150 | 70 | 607–650 |
| 5083 | O, H111, H116, H321 | 275–345 | 125–215 | 10–17 | 75–95 | 2.66 | 28–33 | 110–125 | 71 | 570–640 |
| 6061 | O, T4, T6, T651 | 260–310 (T6 ≈ 290) | 240 (T6) | 8–12 | 85–100 | 2.70 | 38–43 | 160–170 | 69 | 582–652 |
| 6063 | T5, T6, T66 | 190–220 (T6 ≈ 205) | 140–170 (T6 ≈ 160) | 8–12 | 65–75 | 2.70 | 48–55 | 190–210 | 69 | 615–655 |
| 6082 | O, T4, T6, T651 | 290–340 (T6) | 240–280 (T6) | 6–12 | 90–105 | 2.70 | 35–40 | 160–180 | 70 | 555–650 |
| 6101 | T1, T6, T61 | 190–220 (T6/T61) | 110–130 | 8–15 | 60–80 | 2.70 | 52–58 | 195–210 | 69 | 600–655 |
| 7075 | O, T6, T651, T73 | 510–570 (T6) | 430–505 (T6) | 7–11 | 135–160 | 2.81 | 30–36 | 120–140 | 72 | 477–635 |
Fabrication & Processing (Qualitative)
| Alloy | Formability | Weldability (Fusion) | Brazeability | Machinability | Corrosion Resistance | Anodizing (Decorative) | Typical Pipe/Tube Uses |
|---|---|---|---|---|---|---|---|
| 1050 | Excellent | Excellent | Good | Poor–Fair | Excellent (general) | Good | Heat transfer, ducting, formed coils |
| 1100 | Excellent | Excellent | Good | Poor–Fair | Excellent (general) | Good | HVAC tubes, low-stress piping |
| 3003 | Very Good | Excellent | Good | Fair | Very Good | Good | Heat exchanger tubes, condenser coils |
| 5052 | Good | Excellent | Fair | Fair | Excellent (marine) | Fair | Marine piping, fuel & hydraulic lines |
| 5083 | Fair–Good | Excellent | Fair | Fair | Outstanding (seawater) | Fair | Shipbuilding piping, cryogenic lines |
| 6061 | Good | Good (beware hot cracking) | Good | Good | Good | Good | General structural tubes, frames |
| 6063 | Very Good | Good | Good | Fair–Good | Good | Excellent | Architectural tubes, decorative pipe |
| 6082 | Fair–Good | Good | Good | Good | Good | Good | High-strength structural piping |
| 6101 | Good | Good | Good | Fair–Good | Good | Good | Electrical bus tubes, conductors |
| 7075 | Poor–Fair | Poor (generally not welded) | Fair | Good–Very Good | Fair (needs protection) | Fair | Aerospace/critical, non-welded tube |
Notes: (1) Property ranges reflect typical mill data for tube/pipe products. (2) Conductivity shown as %IACS at 20 °C. (3) Welding guidance is general; joint design, filler, and heat input will affect results. (4) For project MTCs, we certify to applicable standards (ASTM/ASME/EN/JIS) and temper.
Applications
Aluminium Pipes and Tubes from Navkar Metal Syndicate are used across a wide range of industries owing to their excellent combination of light weight, strength, corrosion resistance, and aesthetic finish. Below is a detailed table of their common industrial applications.
| Industry / Sector | Common Alloys | Typical Applications | Key Advantages |
|---|---|---|---|
| HVAC & Refrigeration | 1050, 1100, 3003 | Heat exchanger coils, condenser and evaporator tubing, chilled water lines, air-conditioning ducts | High thermal conductivity, excellent corrosion resistance, light weight |
| Architectural & Construction | 6063, 6061, 6082 | Handrails, façade frameworks, curtain wall supports, window & door frames, decorative tubes | Excellent anodizing response, attractive finish, long service life |
| Marine & Offshore | 5052, 5083, 6082 | Boat masts, ladders, ship piping, offshore platforms, seawater cooling & hydraulic lines | Outstanding resistance to seawater & brine corrosion, non-magnetic, durable |
| Automotive & Transport | 6061, 6063, 6101, 7005, 7075 | Chassis tubes, roll cages, roof rails, fuel lines, heat exchangers, crash structures | Lightweight for fuel efficiency, high strength-to-weight ratio, easy formability |
| Electrical & Power Distribution | 6101, 6063, 1100 | Bus bars, conduits, power transmission tubes, earthing rods | Excellent electrical conductivity, non-sparking, economical alternative to copper |
| Aerospace & Defense | 2024, 6061, 7075 | Hydraulic lines, fuselage tubing, aircraft fittings, landing gear components | High tensile strength, fatigue resistance, low density |
| Food, Beverage & Pharmaceutical | 1050, 1100, 3003, 6063 | Dairy and brewery piping, food conveyors, pharmaceutical fluid lines, clean-room frameworks | Non-toxic, hygienic, easy to clean, FDA compliant |
| Furniture & Interior Design | 6063, 6061 | Modular furniture, decorative trims, tables, light fixtures, curtain rods | Light weight, aesthetic anodized finish, easy fabrication |
| Renewable Energy | 6061, 6082, 6101 | Solar panel mounting structures, wind turbine components, heat exchanger tubes | Corrosion resistant, thermally conductive, recyclable |
| General Engineering & Fabrication | 6061, 6063, 6082, 5052 | Machine frames, pneumatic and hydraulic systems, fabrication & structural works | Weldable, machinable, durable, excellent dimensional stability |
Note: Aluminium pipes & tubes can also be supplied in anodized, powder-coated, brushed, or polished finishes to suit architectural or industrial requirements.
Standards & International Equivalents:
Reference guide to commonly used standards for aluminium pipe & tube across major jurisdictions. Equivalents are indicative and may vary by alloy/temper, dimensional tolerance class, and product form (seamless, extruded, drawn, welded). Always match the exact project specification and latest standard revision.
| Product / Form | ASTM / ASME (USA) | EN (Europe) | ISO (International) | JIS (Japan) | IS (India) | DIN (Germany) |
|---|---|---|---|---|---|---|
| Seamless Pipe & Seamless Extruded Tube | ASTM B241 / B241M | EN 755-8 (extruded tubes) • EN 755-7 (tolerances) | ISO 6363-6 (extruded tubes) • ISO 6363-1 (general) | JIS H 4040 (seamless tubes/pipes) | IS 2672 (extruded round tubes) | DIN 17296 (Al tubes, seamless/extruded) |
| Drawn Seamless Tube (General Engineering) | ASTM B210 / B210M | EN 754-8 (cold-drawn seamless) • EN 754-7 (tolerances) | ISO 6362-6 (drawn tubes) • ISO 6362-1 (general) | JIS H 4080 (drawn tubes) | IS 2673 (drawn round tubes) | DIN 1748 (drawn tubes) |
| Condenser / Heat-Exchanger Tubes (Drawn Seamless) | ASTM B234 | EN 754-8 (drawn seamless) • Project-specific HX norms | ISO 6362-6 (drawn) • ISO 12241 (HX thermal — ref.) | JIS H 4080 (drawn tubes) | IS 737/IS 2673 (alloy/temper & drawn tube) | DIN 1748 / DIN 1714x (as specified) |
| Structural Extruded Tube (Round / Square / Rect.) | ASTM B221 (extruded bars, profiles & tubes) | EN 755-8 (extruded tubes) • EN 755-9 (mechanical props) | ISO 6363-6 (extruded tubes) | JIS H 4100 / H 4040 (profiles & tubes) | IS 733 (extruded bars & profiles) • IS 2672 | DIN 17296 / DIN EN 755 series |
| Precision / Tight-Tolerance Tube (Cold-Worked) | ASTM B210 (drawn) • ASTM B483/B483M (drawn tube) | EN 754 series (drawn tubes, tolerances & props) | ISO 6362 series (drawn products) | JIS H 4080 | IS 2673 | DIN 1748 |
| Seamless Aluminum Pipe (Round, Extruded) | ASTM B313 (seamless round extruded pipe) | EN 755-8 • EN 755-7 | ISO 6363-6 | JIS H 4040 | IS 2672 | DIN 17296 |
| Wrought Fittings for Al Pipe/Tube (Bends, tees, reducers for aluminium systems) |
ASTM B361 | EN 754/755 referenced • Project spec | ISO 6363/6362 referenced | JIS H 5302 (cast) / proj. spec for wrought | IS (project-specific) | DIN EN 1092 ref. (flanges) • project spec |
Notes
- Alloy & Temper: Specify alloy (e.g., 1050, 3003, 5052, 5083, 6061, 6063, 6101, 6082, 7075) and temper (e.g., O, H112, T4, T5, T6) with the standard.
- Tolerances: Use EN 754-7 (drawn) or EN 755-7 (extruded) / ISO 286-1 classes as applicable for dimensional tolerances.
- Revision: Always adopt the latest published edition/errata of the referenced standard.
- Equivalence: “Equivalents” are functional cross-references; technical parity must be confirmed against chemistry, mechanicals, NDT, and tolerance clauses.
Common Names & International Identifiers
Cross-reference of popular aluminium alloys used for pipes & tubes. Identifiers are indicative; verify exact alloy/temper against the latest standard before ordering.
| Common / Trade Name | AA / UNS (USA) | EN Designation (Europe) | ISO Numeric (Example) | JIS (Japan) | Typical Tempers (Pipe/Tube) | Typical Uses |
|---|---|---|---|---|---|---|
| Commercially Pure 1050 | AA 1050 • UNS A91050 | EN AW-1050A (Al99.5) | Al99.5 | A1050 | O, H14, H24 | General purpose, forming, HVAC light tubes |
| Commercially Pure 1060 | AA 1060 • UNS A91060 | EN AW-1060 (Al99.6) | Al99.6 | A1060 | O, H14 | Electrical, decorative tubing |
| Commercially Pure 1100 | AA 1100 • UNS A91100 | EN AW-1100 (Al99.0) | Al99.0 | A1100 | O, H14, H16 | Heat exchanger, chemical, architectural |
| 3003 (Al-Mn) | AA 3003 • UNS A93003 | EN AW-3003 (AlMn1Cu) | AlMn1Cu | A3003 | O, H14, H112 | HVAC, condensers, general fabrications |
| 3103 (Al-Mn) | AA 3103 • UNS A93103 | EN AW-3103 (AlMn1) | AlMn1 | A3103 | O, H14 | Building tubes, fin stock, cladding |
| 5005 (Al-Mg) | AA 5005 • UNS A95005 | EN AW-5005 (AlMg1) | AlMg1 | A5005 | O, H14 | Architectural, decorative tube |
| 5052 (Marine Al-Mg) | AA 5052 • UNS A95052 | EN AW-5052 (AlMg2.5) | AlMg2.5 | A5052 | O, H32, H34, H112 | General marine tubing, fuel & air lines |
| 5083 (High-Mg Marine) | AA 5083 • UNS A95083 | EN AW-5083 (AlMg4.5Mn0.7) | AlMg4.5Mn0.7 | A5083 | O, H111, H112 | Pressure tubes, shipbuilding, cryo |
| 5086 (Marine Al-Mg) | AA 5086 • UNS A95086 | EN AW-5086 (AlMg4) | AlMg4 | A5086 | O, H32, H111 | Offshore, vehicular structures |
| 5454 (Al-Mg) | AA 5454 • UNS A95454 | EN AW-5454 (AlMg3Mn) | AlMg3Mn | A5454 | O, H32, H34 | Chemical tanks, hot-service tubes |
| 6060 (Al-Mg-Si) | AA 6060 • UNS A96060 | EN AW-6060 (AlMgSi) | AlMgSi | A6060 | T5, T6 | General extruded tube, frames |
| 6061 (Structural Al-Mg-Si) | AA 6061 • UNS A96061 | EN AW-6061 (AlMgSiCu) | AlMg1SiCu | A6061 | T4, T6, T6511, H112 | Pressure lines, structural pipes |
| 6063 (Architectural Al-Mg-Si) | AA 6063 • UNS A96063 | EN AW-6063 (AlMg0.7Si) | AlMg0.7Si | A6063 | T5, T6 | Decorative/architectural tubes |
| 6063A (High-Si variant) | AA 6063A • UNS A96063A | EN AW-6063A (AlMg0.7Si) | AlMg0.7Si | A6063 (spec. variant) | T5, T6 | Precision extruded tubing |
| 6082 (High-strength Al-Mg-Si) | AA 6082 • UNS A96082 | EN AW-6082 (AlSi1MgMn) | AlSi1MgMn | A6082 (when specified) | T6, T6511, H112 | Structural tube, load-bearing |
| 6101 (Electrical Conductor) | AA 6101 • UNS A96101 | EN AW-6101 (AlMgSi) | AlMgSi | A6101 | T61, T63 | Bus tubes, power applications |
| 6351 (Al-Mg-Si) | AA 6351 • UNS A96351 | EN AW-6351 (AlSi1Mg0.5Mn0.4) | AlSi1Mg0.5Mn0.4 | A6351 | T5, T6 | High-pressure cylinders, structural |
| 7005 (Weldable Al-Zn-Mg) | AA 7005 • UNS A97005 | EN AW-7005 (AlZn4.5Mg1.5) | AlZn4.5Mg1.5 | A7005 | T5, T6 | Lightweight frames, special tubes |
| 7075 (High-strength Al-Zn-Mg-Cu) | AA 7075 • UNS A97075 | EN AW-7075 (AlZn5.5MgCu) | AlZn5.5MgCu | A7075 | T6, T73 | Aerospace tubes (limited, machined) |
Notes
- AA/UNS: AA is the Aluminum Association designation; UNS uses the A9xxxx format.
- EN: Use with EN 573 (chemical) + EN 755/754 (extruded/drawn tubes) + EN 485 (mechanicals, flat products) as applicable.
- ISO/JIS: ISO numeric strings are representative family names; JIS uses the “Axxxx” style for alloys.
- Tempers: Availability by alloy & tube process (extruded, drawn, seamless). Confirm with mill datasheet/MTC.
Common Product Forms & Dimensions
Pipe OD, Wall Thickness & Schedule (Size in Inches & Metric)
| Nominal Size (NPS) | Outside Dia D (mm) | Wall Thickness T (mm) by Schedule | Metric Size (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| SCH 10S | SCH 10 | SCH 40S | STD Weight | SCH 40 | SCH 80S | SCH 80 | |||
| 1/4" | 13.72 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | ||
| 3/8" | 17.15 | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | ||
| 1/2" | 21.34 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 15 | |
| 3/4" | 26.67 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 20 | |
| 1" | 33.40 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 25 | |
| 1 1/4" | 42.16 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 32 | |
| 1 1/2" | 48.26 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 40 | |
| 2" | 60.32 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 50 | |
| 2 1/2" | 73.02 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 65 | |
| 3" | 88.90 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 80 | |
| 3 1/2" | 101.60 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 90 | |
| 4" | 114.30 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 100 | |
| 5" | 141.30 | 3.40 | 6.55 | 6.55 | 6.55 | 9.52 | 9.52 | 125 | |
| 6" | 168.27 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 150 | |
| 8" | 219.07 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 200 | |
| 10" | 273.05 | 4.19 | 9.27 | 9.27 | 9.27 | 12.70 | 15.08 | 250 | |
| 12" | 323.85 | 4.57 | 9.52 | 9.52 | 10.31 | 12.70 | 17.47 | 300 | |
| 14" | 355.60 | 4.77 | 6.35 | 9.52 | 11.12 | 19.05 | 350 | ||
| 16" | 404.60 | 4.77 | 6.35 | 9.52 | 12.70 | 21.44 | 400 | ||
| 18" | 457.20 | 4.77 | 6.35 | 9.52 | 14.27 | 23.82 | 450 | ||
Typical Alloy, Size & Application Matrix
| Alloy & Temper | Size (mm) | Typical Application |
|---|---|---|
| 7075-T6 | 14×0.8 / 16×0.7 / 18×0.7 | Ski pole / trekking pole |
| 7075-T6 | 7×0.3 / 9×0.4 | Arrow tubes |
| 2014-T6, 7075-T6, 7075-T76 | 22×2.5 / 30×4.8 | Handle bar |
| AA3003, 6063, 6061 | 16×1.2 / 12×1.75 / 16×1.75 / 12×2 / 7.94×1 / 9.52×1 / 12.7×1.2 / 16×2 | Automobile radiator connector |
| 5046-H111 | - | Condenser & heat exchanger |
| D97, 1015 | - | Automobile heat sink & radiator tubes |
| 7001-T6 | 8.5×0.7 / 9.5×0.7 / 11×0.7 / 7×1.2 | Tent pole |
| AA7045, 7050, 6061 | 60.3×2.29 (7046) / 60.3×2.16 (7050) / 50.8×2.16 (6061) | Bat tubes |
| AA6061, 7005 | 26×18×1.6 / 36×18×1.4 / 65×25×2 / 64×42×1.8 | Bike tubes (rectangular) |
| 7075-T6, 7050-T7351 | 30.5×24.8 / 31.7×22.2 | Bike shock absorbers |
| 3003-H16 | 40×0.8 / 40×0.9 / 25×0.9 / 30×0.9 / 120×0.9 / 164×10 / 140×160 | Copy drum |
| 7075-T6 | - | Aircraft & rail seat components |
Quick Quote
Tell Us What You Need
30+
Years of Experience
Trusted Worldwide | Supplying Copper & Alloys to 1000+ clients
Quick Reply
We usually respond within 24 working hours.
